PSA oxygen generator
We apply adsorbing media from UOP
in the U.S.A. By changing adsorbing pressure(PSA)
,oxygen generators split oxygen from nitrogen,
filtrate out poisonous substance in air, then
get high concentration oxygen which is up to medical
standard. PSA oxygen generators produce low
cost oxygen which purity is 95%±3.
Ⅰ、Features：
1、Material is air,it need not any
other auxiliary material,low power,low cost.
2、Low working pressure keep it is high
reliability、high performance and high safety.
3、Adjustable oxygen flow,big oxygen
production,low noise.
4、Easy to operate，product at any moment ，continue
to supply oxygen.
Ⅱ、Componets：
Two generating cells(From UOP in the U.S.A)
Solenoid electric valve(from CKD、SMC in
Japan，from AIRTAC、SNS in Taiwan)
Power switch board
Separator which gets water from air
Non-oil air compressor（choose fit set by system
spec）

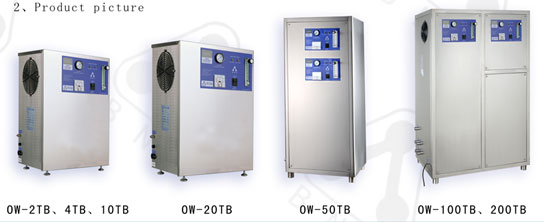

Ⅲ、OW series：
OW-2TB、 OW-4TB、 OW-10TB、 OW-20TB、
OW-50TB、 OW-100TB
Ⅳ、Data、diagram：

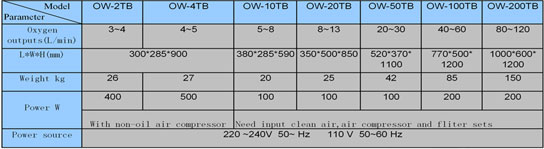

1、Specification（Mark：the specification
maybe changed）
|
Product List
