SOZ-HSAquaculture sterilizing - oxygen feeding equipment
Ⅰ、Function：
The equipment is for mariculture
to sterilize and add Oxygen
1、sterilize the bacterium and virus in the sea
2、Oxygenize the organic matter in the water
3、remove the ammon. azote and nitrite in the
water
4、add Oxygen
Ⅱ、Components：
1、Indicated lamp for the power
2、 indicate lamp for the working for Ozone
3、adjust button for ozone yeild
4、current gauge
5、 indicate lamp for accident
6、indicate lamp for the working for ozone
7、 Volt gauge
8、indicate lamp for working for
compressor
9、power swith
10、the manual on-off for Oxygen
11、the setting time for Ozone
12、computer control system
Ⅲ、Operating principle：
1. the equipment use the High
concentration Oxygen as a source. through
frequency conversion product the Ozone then use the
Ozone’s oxidizability to disinfect and reduce
the toxicity of pesticide residue.
2. the Oxygen generator is made in America. By
changing adsorbing pressure (PSA), oxygen
generators split oxygen from nitrogen, filtrate out
poisonous substance in air, then get high
concentration oxygen which is up to medical
standard. Then dissolve the Ozone to the water by
the pump, so get the high concentration ozone
water.
3. Add the gas container for reserve air so the
air compressor can work stable. Install the pressure
control system for the air compressor. Assurance the
life of air compressor. As other function, the
gas container can cool the air. Lengthen the
life of the Oxygen generator.

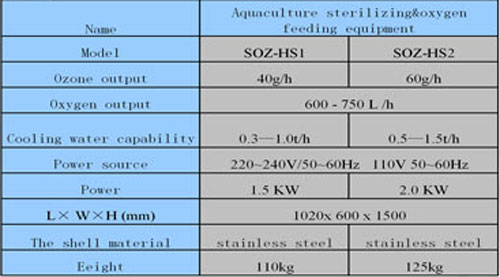

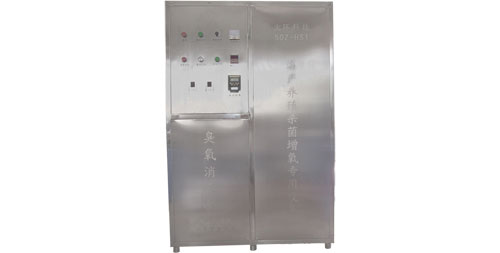

Ⅳ、Specification and
picture： （Mark：the specification
maybe changed)
|
