Integrated ozone & oxygen generator
The series product use
oxygen generator in it to adopt oxygen. It use ozone
generator produces high density ozone.This machine
inside place to have no oil air
compressor,percolation device, plug in can
immediately produce ozone.
Ⅰ、Features：
1、We apply adsorbing media from
UOP in the U.S.A. By changing adsorbing pressure
(PSA) oxygen generators split oxygen from nitrogen,
filtrate out poisonous substance in air, then get
high concentration oxygen which is up to medical
standard.
2、SOZ Series ozone generators use high
reliability 、high efficiency and long life
non-hydroxide crystal titanic generating cell, The
cell is designed particularly with ozone resistant
double pipes. They are cooled by air or cool water.
SOZ Series use high quality components. Intelligent
cell design is the first creation in the
world.(patented)
3、Adjustable Ozone output, low noise.
4、Easy to operator, product at any moment.
Ⅱ、Components：
Two generating cells(From UOP in
the U.S.A)、Solenoid electric valve(from CKD in
Japan)、Power switch board,Separator which gets water
from air、 Non-oil air compressor Discharge
cell、stainless casing、current meter、150
fan、flowmeter、ozone adjusting knob
Ⅲ、Data、diagram：

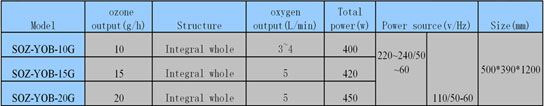

1、Specification（Mark：the
specification maybe changed）
 |
| |
 |
| |
| |
|
Product List
